F200 MAX Electric Steering System

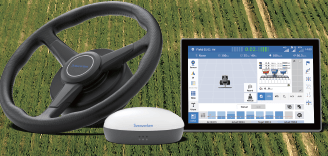

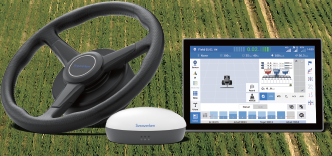

The Electric Auto Steering Kit

Our kits come complete with everything needed to steer your machine, whether it be a Tractor, Harvester, Sprayer or nearly anything else with a steering wheel

• Display terminal

• GNSS receiver

• Steering wheel & motor

• All wiring & mounts to connect it all up to your machine

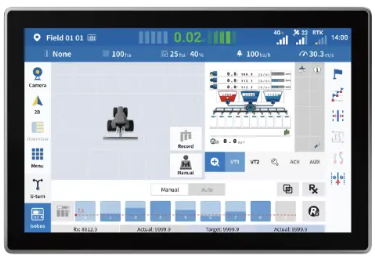

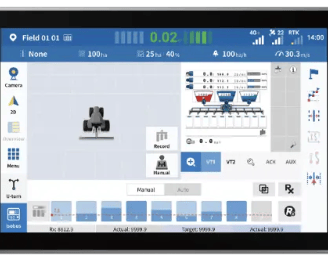

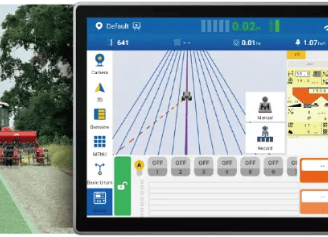

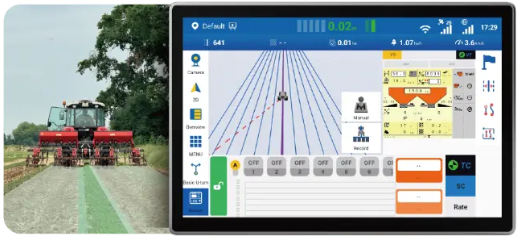

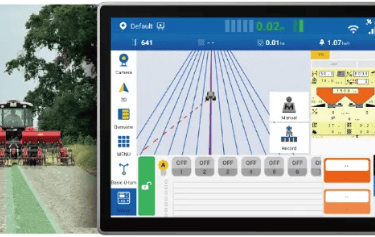

The Display & Operating System

• 12.1" full colour touchscreen - 2" larger than the Std F200

• Faster operating system with more storage than the std F200

• Very simple operating system that's not clunky & hard to use

• Full Implement library to save all of your machine data

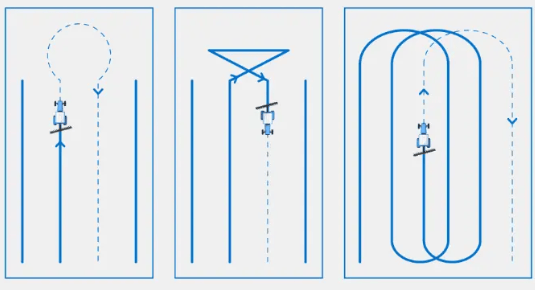

• Multiple guidance line options, straight A-B, A+ heading, contour, pivot & more

• Day & night mode - visibility when you need it

• Full remote support - we can log into your display remotely to assist where needed

• Wireless data transfer - transfer field data, run lines, implement data to other displays or the FMS with the press of a button

• Can export NMEA signal to other controllers

• Ram Mount mounting - all thats needed is something to mount to!

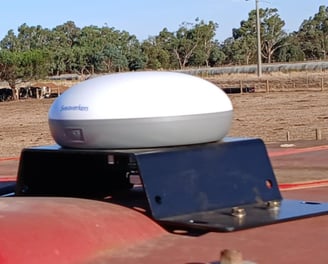

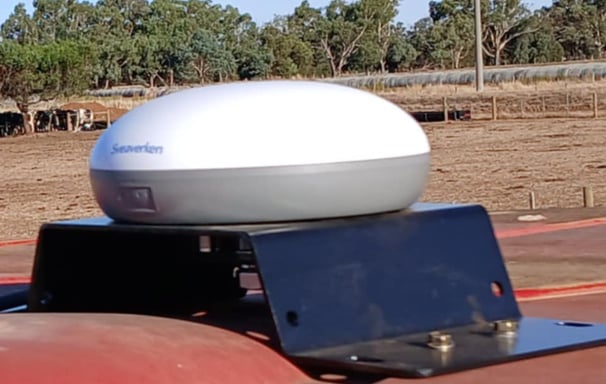

The GNSS Receiver & Correction Options

• Full GNSS receiver

• 2.5cm RTK capable out of the box - no extra unlocks or hardware

• FREE access to 10cm +/- PPP (Precise Point Positioning) signal

• RTK via either 400mhz radio or Ntrip (4G) solutions

• The receiver also houses the gyros for steering control

• Includes mounting bracket - just requires a solid surface

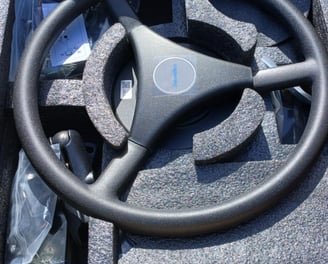

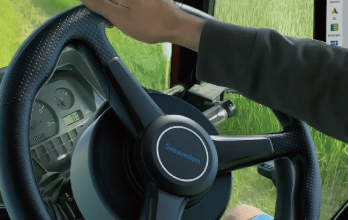

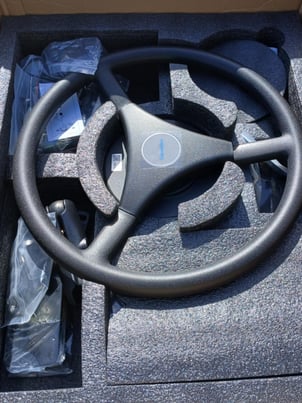

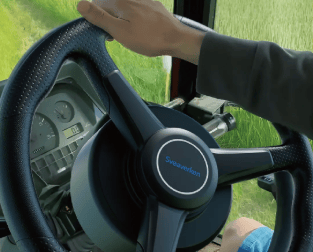

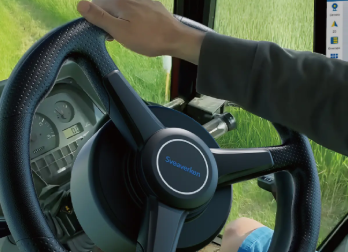

The Steering Wheel & Motor

• Replaces factory steering wheel

• High torque electric motor

• Comfortable Leatherised steering wheel

• Each kit comes with spline & brackets to suit your machine

• Minimal impact to vision & cab clutter

• Extremely universal, will fit almost any machine with a steering wheel!

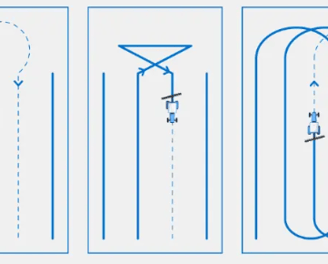

Advanced Mode Upgrade

For an additional cost you can unlock 'Advanced Mode', this then gives you fully automated headland turn functions & full field management capabilities

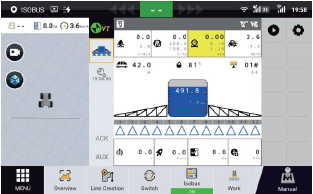

ISOBUS Implement Control

ISOBUS is a standard communication protocol utilised by most modern equipment manufacturers. The beauty of ISOBUS is that you can swap machines between tractors without swapping around displays, controllers & clunky wiring harnesses. But, by having these implements displayed on your GPS system it also gives you the ability to accurately record your actual coverage as well as automatically control your implement sections to improve product efficiency. ISOBUS capability requires an additional harness and section control and/or VRA unlocks if needed

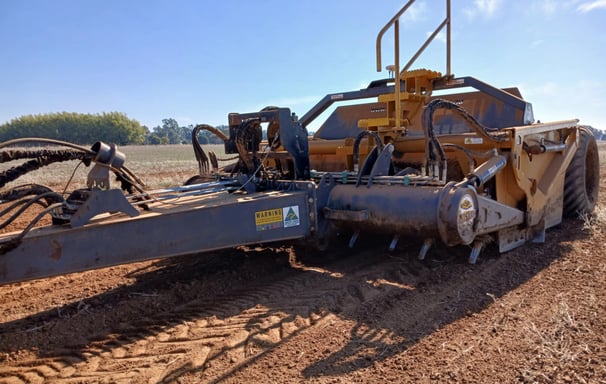

Land Levelling

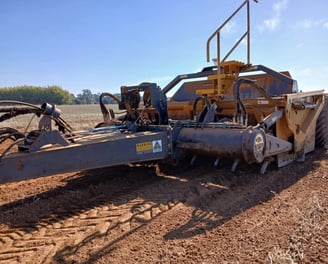

With the addition of the Land Levelling Kit, our systems can also control a scraper bucket or levelling blade to aid in precision land levelling, single or dual antennas can be utilised.

Simple jobs can be created in the display or advanced designs can be imported to complete the job.

Ideal for:

• Levelling irrigation paddocks

• Building drains

• levelling paddocks to improve drainage

This system will control the hydraulic valve on the machine to automatically level the paddock. If your machine doesn't have a valve, we can supply one to suit. Will also control the electro valves on some Case IH & JD tractors

Note: High accuracy RTK is required for land levelling

Precision Spray Control

We can also retrofit your older sprayer with a Precision Spraying kit, which then turns it into an ISOBUS implement, giving you all the advantages of automatic section and variable rate control. This is a great way of upgrading to new tech, without the price tag of a new sprayer

We can either utilise your existing control valve system or fit a complete new control valve system

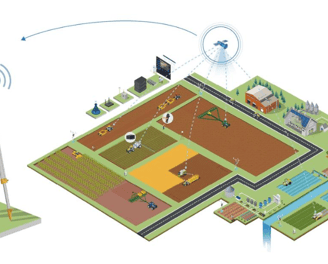

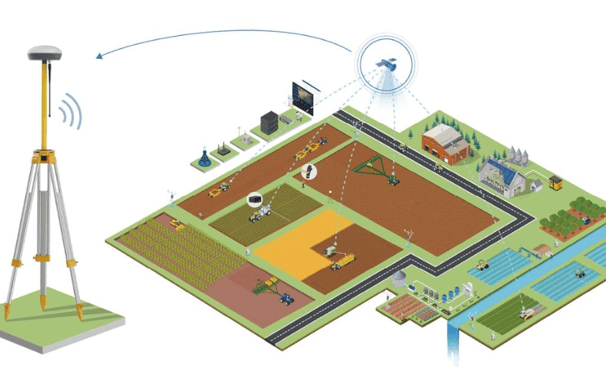

RTK Base Station Options

• V1 Portable Base Station - this unit can be moved between properties to suit & is designed for temporary mounting, capable of approximately 10km coverage*

• N20 Fixed Base Station - built for permanent mounting to give you up to 30km of coverage*

  *depending on obstructions, terrain & satellite availability

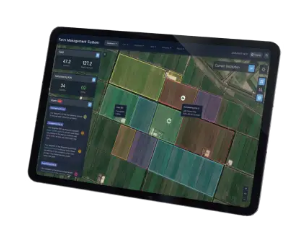

Farm Management System (FMS)

FMS enables you to create & manage fields, runlines, boundaries, markers, VRA prescriptions, coverage data all from the comfort of your computer or tablet. this data can then be wirelessly transferred to your display. FREE for the first year, then subscribe after that.

Other Options To Consider

• Wireless & Wired Engage Switches

• Wireless & Wired Cameras

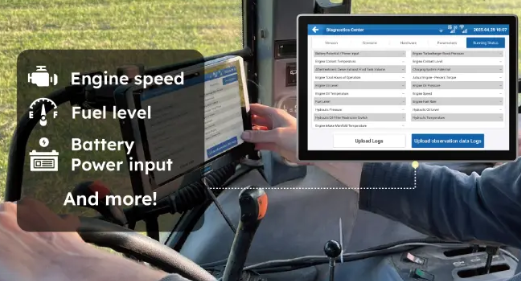

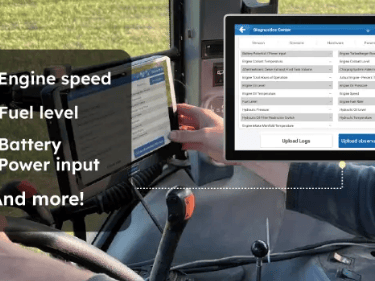

• Remote machine diagnostic data interface

• Area recording switches

Installation & Support

We provide full professional installation, setup & instruction with every system, this ensures the system is installed & operates correctly as well as the operator has an understanding of how to make it work.

We also provide aftersales support where needed, in some cases this can even be done via remote control

Dave has a vast experience & understanding of precision agriculture equipment from many years in the industry, this combined with the exceptional support we receive from Sveaverken, we are well placed to keep your system working

All of our systems are covered by a 2 year factory backed warranty
